Iscar

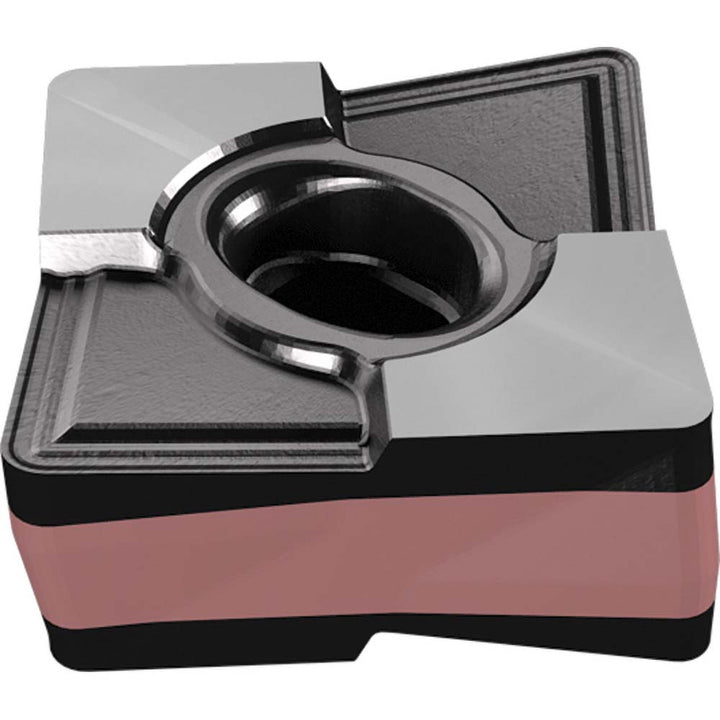

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 3336036
MFR# 3336036ISO/ANSI# ISO 13399Series Logiq4turn
$21.91List $28.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3336036 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Chip breakerM3M
Clearance codeX
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Included angle80.0
Insert length0.5410
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code508
Insert styleCXMG
Insert thickness0.2280
Iso codeISO 13399
Manufacturer gradeIC807
Maximum depth of cut0.1970
Primary workpiece materialUniversal
RakePositive
Single or double endDouble
StandardsISO 13399
Tolerance codeM
