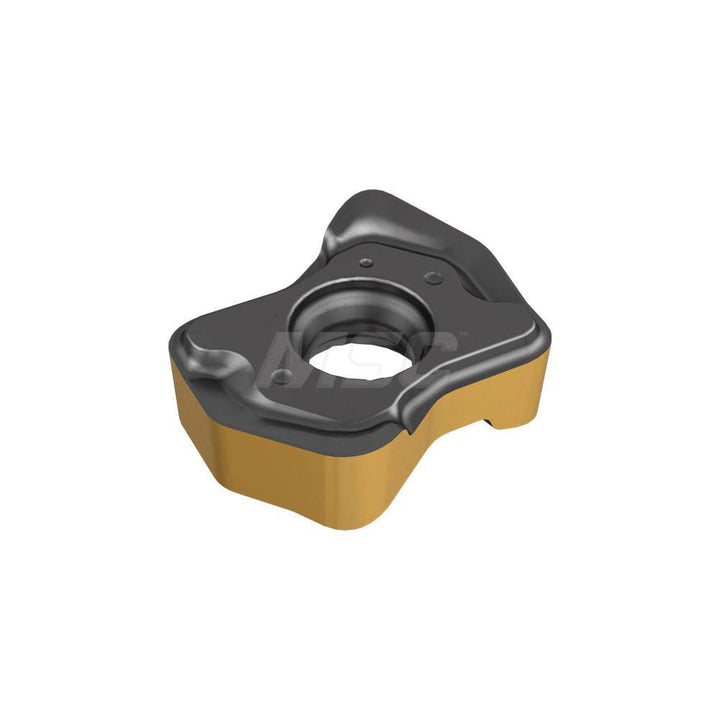

FFX4 XNMU 040310T Solid Carbide Insert, Grade IC830, AlTiN - Iscar 3336657

Iscar

FFX4 XNMU 040310T Solid Carbide Insert, Grade IC830, AlTiN - Iscar 3336657

MFR# 3336657ISO/ANSI# FFX4 XNMU 040310TCat# FFX4 XNMU 040310T IC830Series LOGIQ4FEED

$20.07List $25.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBone
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 3336657 is a FFX4 XNMU 040310T solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeFFX4 XNMU 040310T IC830
Chip breakerT
Coating finishAlTiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityFFX4
Cutting edge effective length0.0315
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2820
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBone
Insert size04
Insert size code040310
Insert styleXNMU
Iso codeFFX4 XNMU 040310T
Length0.3770
Length range0.3200 to 0.4000
Manufacturers catalog numberFFX4 XNMU 040310T IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.0315
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1555
Thickness range0.1500 to 0.1750
Width0.2820
