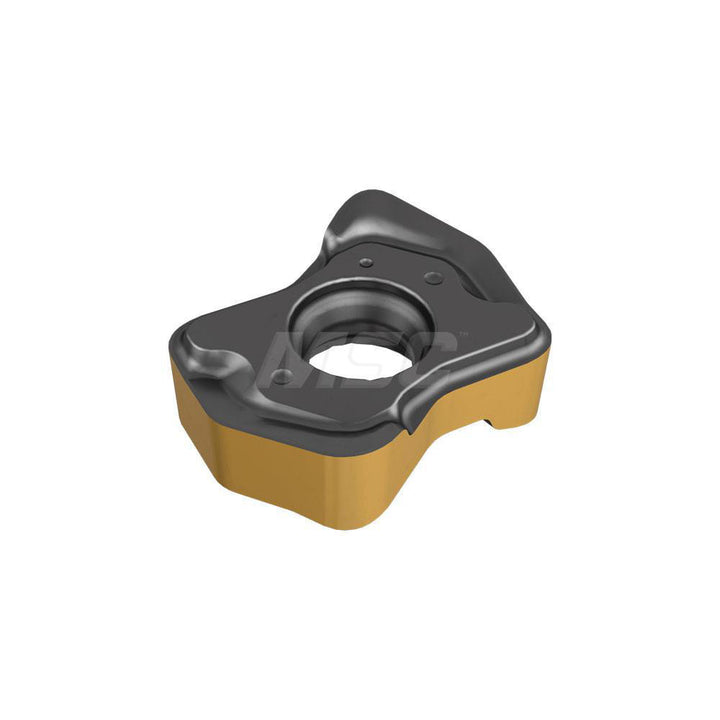

FFX4 XNMU 040310T Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3336659

MFR# 3336659ISO/ANSI# FFX4 XNMU 040310TCat# FFX4 XNMU 040310T IC808Series LOGIQ4FEED

$20.07List $25.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBone
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 3336659 is a FFX4 XNMU 040310T solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeFFX4 XNMU 040310T IC808
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityFFX4
Cutting edge effective length0.0315
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2820
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBone
Insert size04
Insert size code040310
Insert styleXNMU
Iso codeFFX4 XNMU 040310T
Length0.3770
Length range0.3200 to 0.4000
Manufacturers catalog numberFFX4 XNMU 040310T IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0315
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1555
Thickness range0.1500 to 0.1750
Width0.2820
