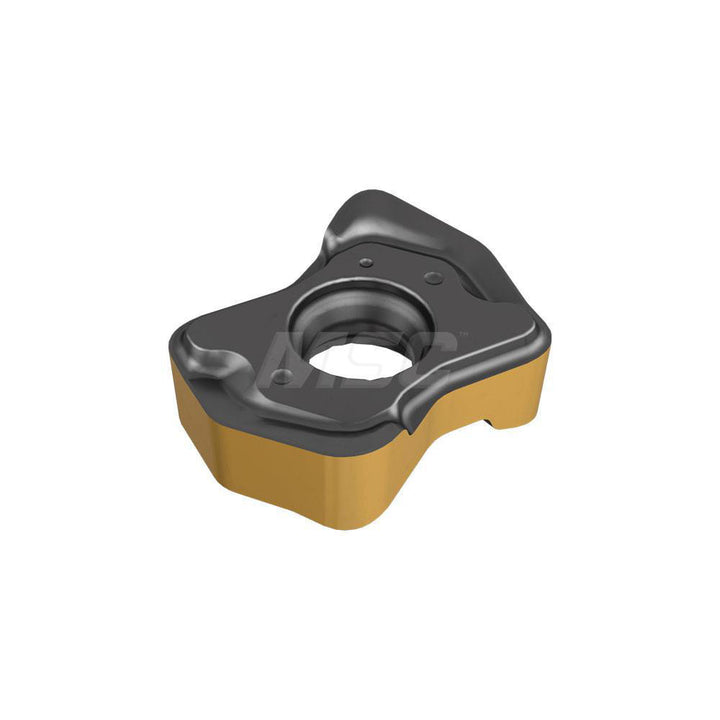

FFX4 XNMU 040310HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3336664

Iscar

FFX4 XNMU 040310HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3336664

MFR# 3336664ISO/ANSI# FFX4 XNMU 040310HPCat# FFX4 XNMU 040310HP IC882Series LOGIQ4FEED

$29.52List $37.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBone
GradeIC882
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 3336664 is a FFX4 XNMU 040310HP solid carbide indexable insert, grade IC882, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeFFX4 XNMU 040310HP IC882
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityFFX4
Cutting edge effective length0.0315
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2820
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBone
Insert size04
Insert size code040310
Insert styleXNMU
Iso codeFFX4 XNMU 040310HP
Length0.3770
Length range0.3200 to 0.4000
Manufacturers catalog numberFFX4 XNMU 040310HP IC882
Manufacturer gradeIC882
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.0315
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.2820
