Iscar

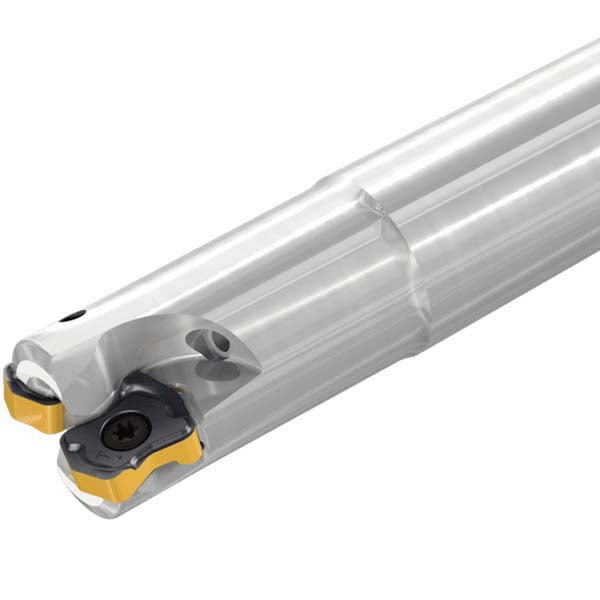

Indexable End Mills - Iscar 3336696
MFR# 3336696Series Logiq 4 Feed
$449.41List $456.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSteel
Description
The Iscar 3336696 indexable end mills. Series Logiq 4 Feed.
Specifications
Compatible insert styleFFX4XNMU040310T
Coolant throughYes
Cutting diameter0.4590
End mill materialSteel
End mill typeHigh Feed
Head length2.0000
Insert holding methodScrew
Maximum cutting diameter in3/4
Maximum depth of cut (mm)0.80
Maximum ramping angle2.90
Minimum cutting diameter0.4590
Number of cutter inserts3
Number of flutes3
Overall length4.2500
Shank diameter in3/4
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleFFX4
Tool applicationMilling
Weldon flatYes
