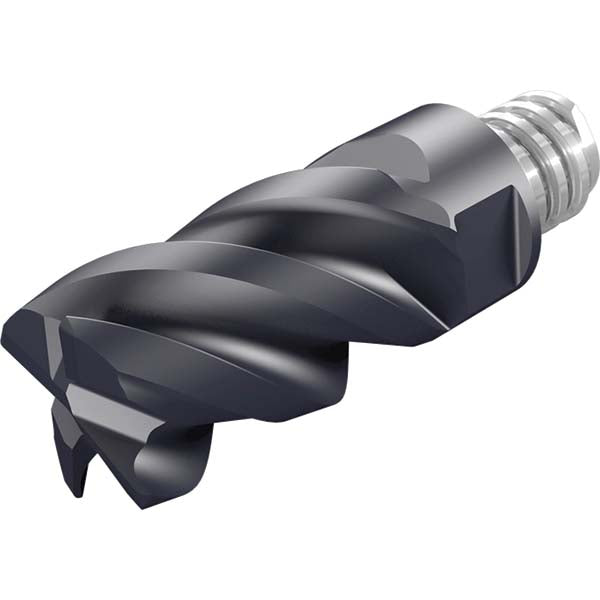

Carbide Insert, Grade IC908, TiAlN - Iscar 3336733

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 3336733

MFR# 3336733Series MM EC-Z4-1.5xD

$181.07List $231.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 3336733 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0150
Cutting diameter (mm)12.70
Cutting width0.5000in
Functional length1.0630
Helix angle46
Included angle degree90
Insert handRight Hand
Insert size500H75R015
Lead angle90
Length of cut in3/4in
Manufacturers catalog number3336733
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.75
Milling tip full descriptionMM EC500H75R015CF-4T08
Milling tip styleMM EC
Milling tip typeCorner Radius
Number of flutes4
Overall length1.0630in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
