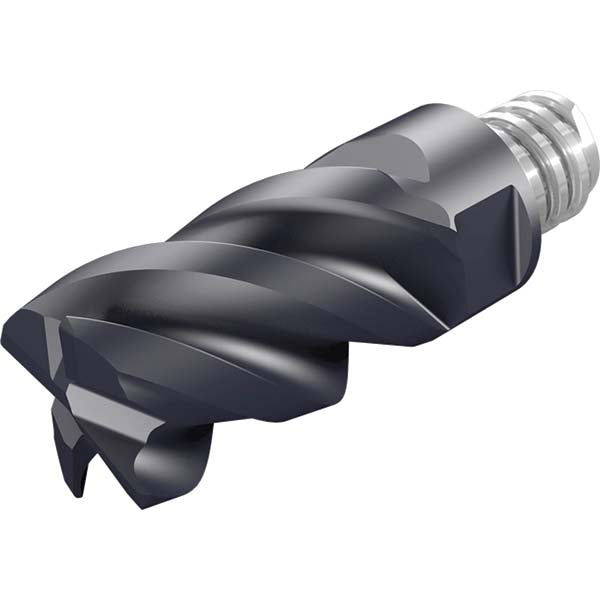

Carbide Insert, Grade IC908, TiAlN - Iscar 3336738
MFR# 3336738Series MM EC-Z4-1.5xD
$445.62List $561.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN
Description
The Iscar 3336738 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0310
Cutting diameter1.0000
Cutting width1.0000in
Functional length2.0670
Helix angle46
Included angle degree90
Insert handRight Hand
Insert size1.0H150R031
Lead angle90
Length of cut in1-1/2in
Manufacturers catalog number3336738
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut1.5
Milling tip full descriptionMM EC1.0H150R031CF-4T15
Milling tip styleMM EC
Milling tip typeCorner Radius
Number of flutes4
Overall length2.0670in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
