Iscar

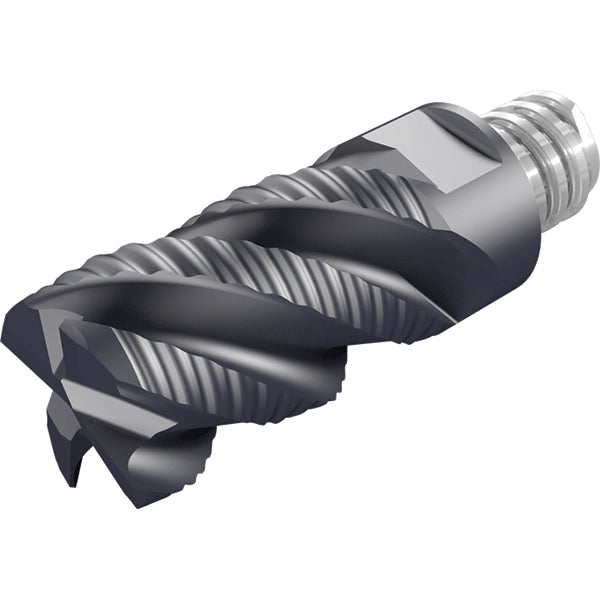

Carbide Insert, Grade IC908, TiAlN - Iscar 3336753
MFR# 3336753Series MM ERS-1.5xD
$399.83List $512.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN
Description
The Iscar 3336753 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle45degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius1.0000
Cutting diameter1.0000
Cutting width1
Functional length2.0670
Helix angle47
Included angle degree90
Insert handRight Hand
Insert size1.0B150
Lead angle90
Length of cut in1-1/2in
Manufacturers catalog number3336753
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut1.5
Milling tip full descriptionMM ERS1.0B150-6T15
Milling tip styleMM ERS
Milling tip typeRoughing
Number of flutes6
Overall length2.067
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
