ISO 13399 Solid Carbide Insert, Grade IC6025, TiCN - Iscar 3337261
MFR# 3337261ISO/ANSI# ISO 13399Series Logiq4turn
$18.17List $23.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description

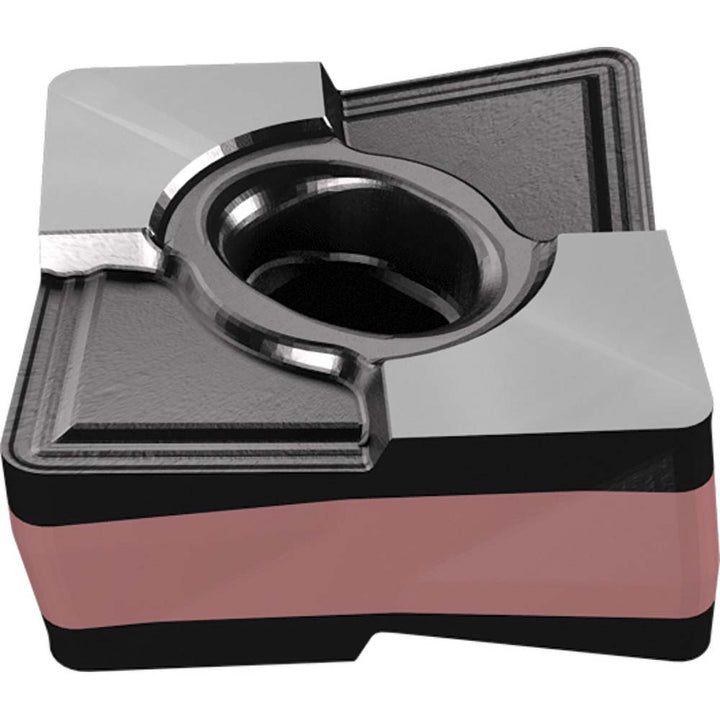

The Iscar 3337261 is a ISO 13399 solid carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM3M
Clearance codeX
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Included angle80.0
Insert length (mm)0.41
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code090408
Insert styleCXMG
Insert thickness0.1830
Iso codeISO 13399
Manufacturer gradeIC6025
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel
RakePositive
StandardsISO 13399
Tolerance codeM
