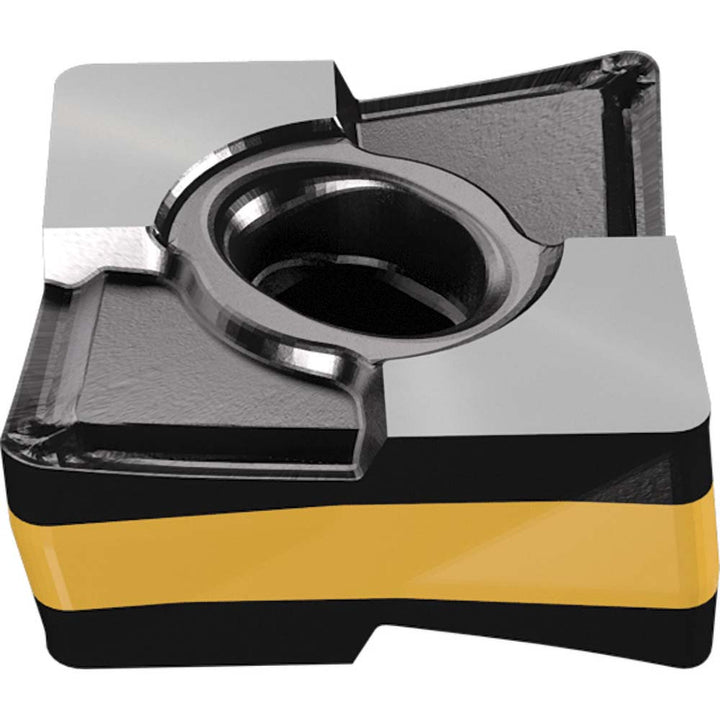

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 3337263

Iscar

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 3337263

MFR# 3337263ISO/ANSI# CXMG090408Series Logiq4turn

$18.17List $23.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC8250
MaterialCarbide
CoatingTiCN

Description

The Iscar 3337263 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeCXMG090408
Ansi size code090408
Chip breakerM3P
Chip breaker operationRoughing; Medium Machining
Clearance codeX
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle0.3680
Insert length (mm)0.41
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code090408
Insert styleCXMG
Insert thickness0.1830
Iso codeISO 13399
Iso insert codeCXMG090408
Iso size code090408
Manufacturer gradeIC8250
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel; Steel
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
