Iscar

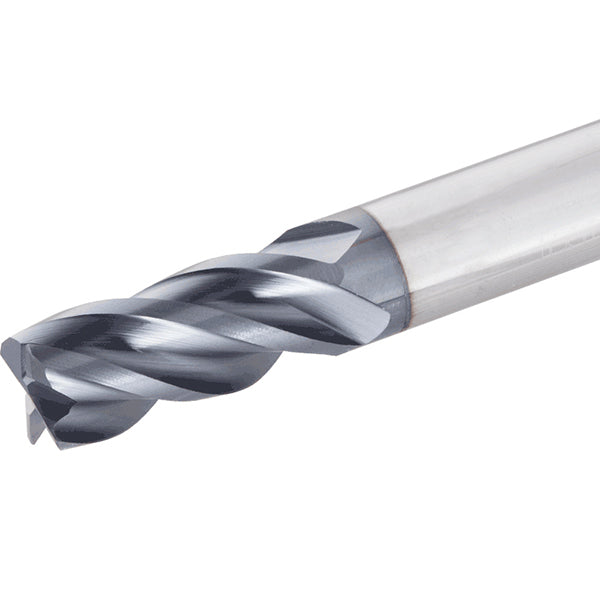

0.7500" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Iscar 3338816

MFR# 3338816Series Chatter Free; Solid Mill; Ti-Turbo

$476.32List $610.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Iscar 3338816 is a 0.7500 4-flute Solid Carbide (Submicron) corner radius end mill with a TiAlN finish for longer tool life. 1-1/2 length of cut. Series Chatter Free; Solid Mill; Ti-Turbo.

Specifications

ChipbreakerNo

Coating finishTiAlN

Corner radius0.0600

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute typeHelical

Helix angle35; 37

Length of cut in1-1/2

Length typeRegular

Material gradeSubmicron

Maximum helix angle37

Mill diameter0.7500

Mill diameter frac in3/4

Minimum helix angle35

Number of flutes4

Shank diameter in3/4

Shank typeSafe-Lock

Single or double endSingle
