Iscar

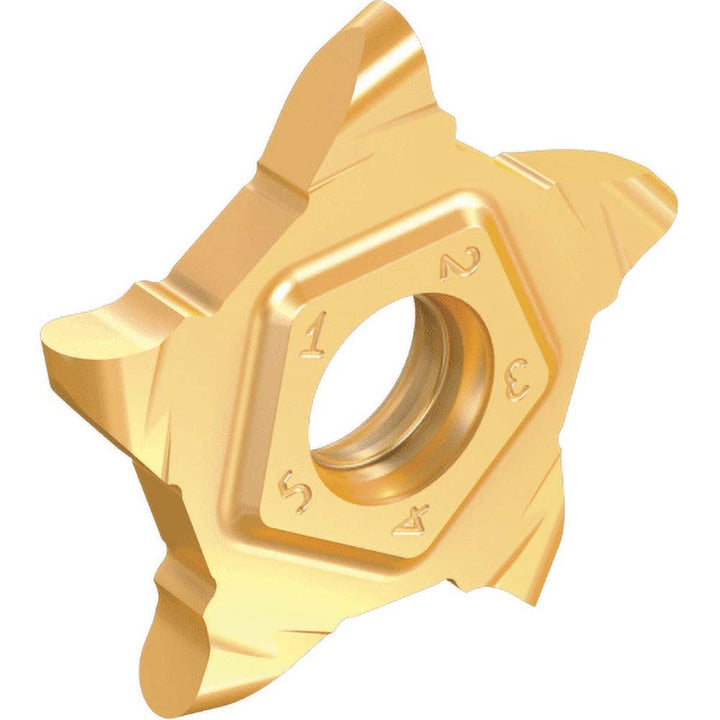

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 3341552
MFR# 3341552ISO/ANSI# ISO 13399Series PentaCut
$54.34List $69.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3341552 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutting height0.0200
Cutting width0.0393
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size17N100P050
Insert size code17N100P050
Insert stylePENTA
Iso codeISO 13399
Manufacturer gradeIC1008
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Rake angle10.00
StandardsISO 13399
