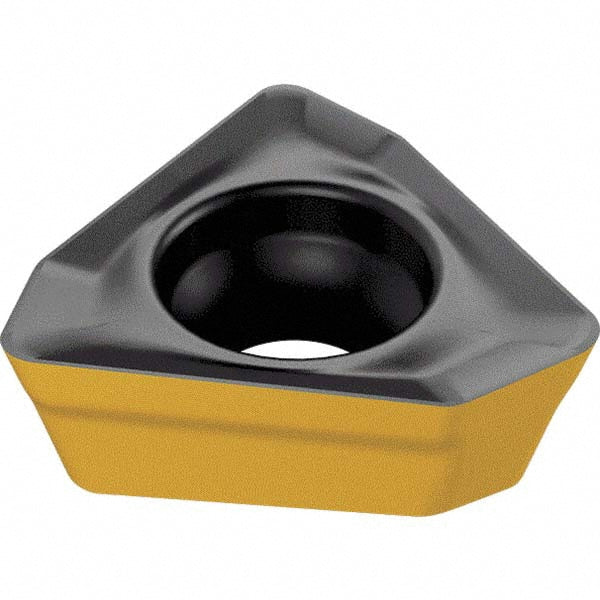

HM390 TPKT 0502PDR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 3342813

Iscar

HM390 TPKT 0502PDR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 3342813

MFR# 3342813ISO/ANSI# HM390 TPKT 0502PDRCat# HM390 TPKT 0502PDR IC830Series HELI3MILL

$17.57List $22.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 3342813 is a HM390 TPKT 0502PDR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHM390 TPKT 0502PDR IC830
Chip breakerPDR
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityHM390-05
Cutting edge effective length0.1913
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.1551
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size05
Insert size code0502
Insert styleTPKT
Iso codeHM390 TPKT 0502PDR
Length0.2070
Length range0.0000 to 0.3200
Manufacturers catalog numberHM390 TPKT 0502PDR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.1378
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.0830
Thickness range0.0000 to 0.1000
Width0.2070
