Iscar

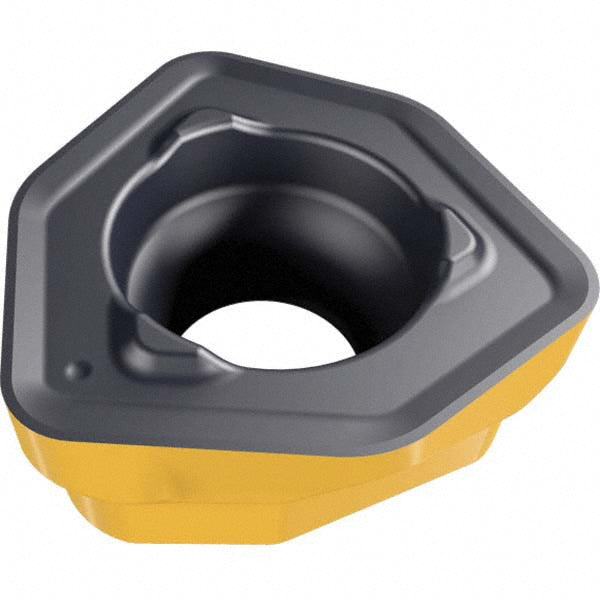

FFT3 WXMT 030206T Solid Carbide Insert, Grade IC830, AlTiN - Iscar 3343669
MFR# 3343669ISO/ANSI# FFT3 WXMT 030206TCat# FFT3 WXMT 030206T IC830Series MICRO3FEED
$15.18List $19.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 3343669 is a FFT3 WXMT 030206T solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeFFT3 WXMT 030206T IC830
Chip breakerT
Coating finishAlTiN
Coating processPVD
Corner radius0.0236
Cutter series compatibilityFFT3
Cutting edge effective length0.1770
Cutting edge styleT-Land
Included angle degree80
Inscribed circle0.1654
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size03
Insert size code030206
Insert styleWXMT
Iso codeFFT3 WXMT 030206T
Length0.1650
Length range0.0000 to 0.3200
Manufacturers catalog numberFFT3 WXMT 030206T IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.0236
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.0870
Thickness range0.0000 to 0.1000
Width0.1650
