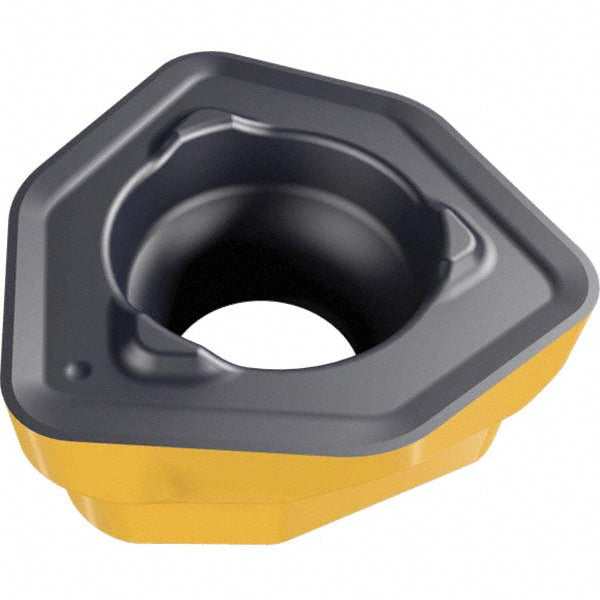

FFT3 WXMT 030206T Solid Carbide Insert, Grade IC808, TiAlN - Iscar 3343670
MFR# 3343670ISO/ANSI# FFT3 WXMT 030206TCat# FFT3 WXMT 030206T IC808Series MICRO3FEED
$14.92List $19.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 3343670 is a FFT3 WXMT 030206T solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeFFT3 WXMT 030206T IC808
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.0236
Cutter series compatibilityFFT3
Cutting edge effective length0.1770
Cutting edge styleT-Land
Included angle degree80
Inscribed circle0.1654
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size03
Insert size code030206
Insert styleWXMT
Iso codeFFT3 WXMT 030206T
Length0.1650
Length range0.0000 to 0.3200
Manufacturers catalog numberFFT3 WXMT 030206T IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.0236
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.0870
Thickness range0.0000 to 0.1000
Width0.1650
