Iscar

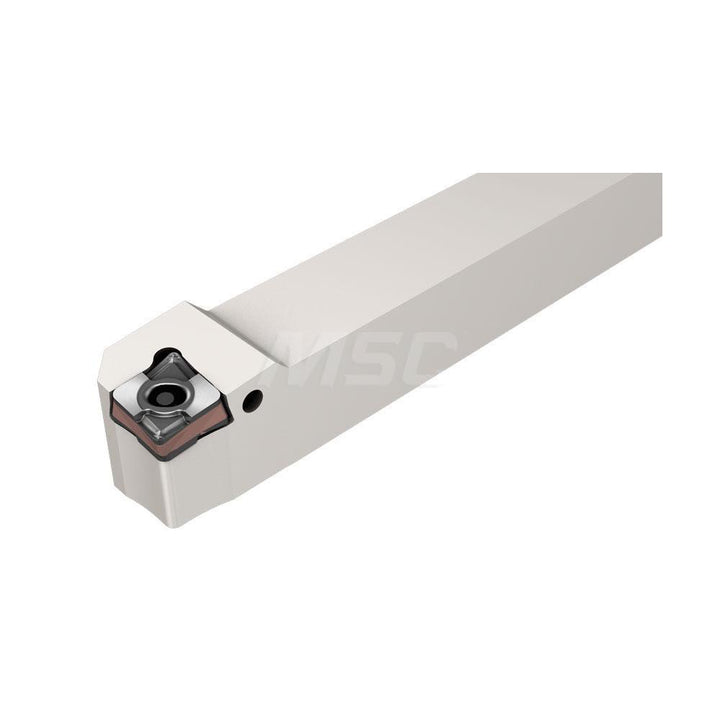

Indexable Turning & Profiling - Iscar 3345537
MFR# 3345537Series LOGIQ4TURN JETCUT
$136.55List $141.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3345537 indexable turning & profiling. Series LOGIQ4TURN JETCUT.
Specifications
Back of bar to cutting edge in1
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.0000
Insert compatibilityCX
Insert holding methodLever
Insert inscribed circle0.4920
Multi use toolNo
Overall length4.5000
RakePositive
Rake angle6
Shank height in3/4
Shank width in3/4
StandardsISO 13399
Toolholder materialSteel
Toolholder stylePCLXR
