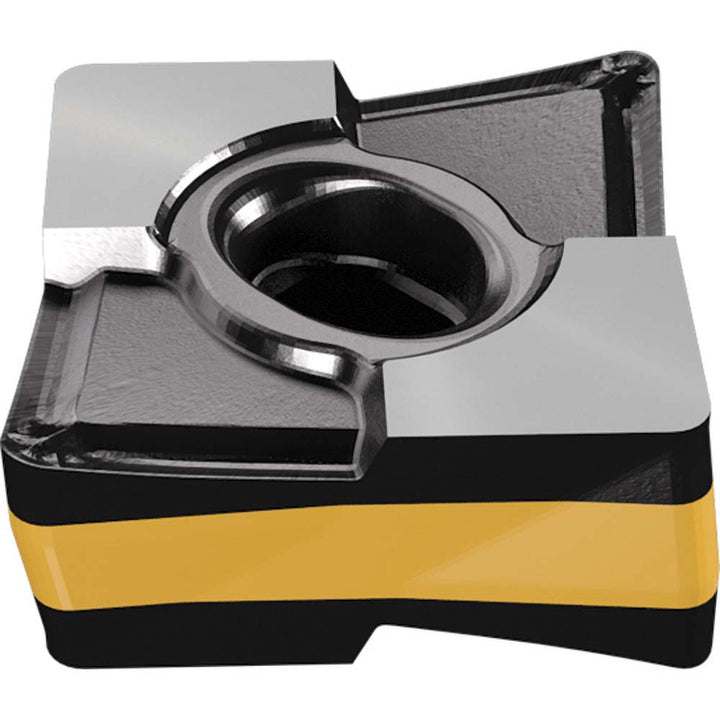

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 3346717
MFR# 3346717ISO/ANSI# ISO 13399Series Logiq4turn
$23.93List $30.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 3346717 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerM3P
Clearance codeX
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Included angle80.0
Insert length0.5410
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code508
Insert styleCXMG
Insert thickness0.2280
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1654
Primary workpiece materialStainless Steel; Steel
RakePositive
StandardsISO 13399
Tolerance codeM
