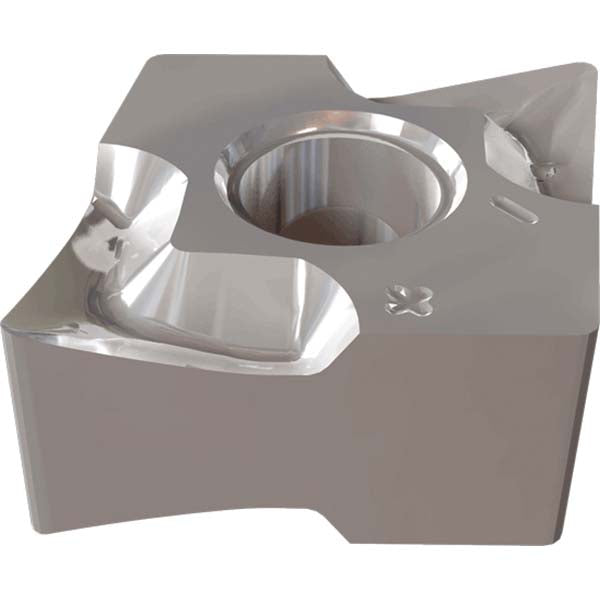

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 3346719
MFR# 3346719ISO/ANSI# ISO 13399Series Isoturn
$23.71List $30.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 3346719 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerF3N-P
Clearance codeX
Coating processUncoated
Corner radius0.0157
Included angle80.0
Inscribed circle0.3750
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleCXMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC20
Maximum depth of cut0.1180
Primary workpiece materialUniversal
RakePositive
StandardsISO 13399
Tolerance codeM
