Iscar
ISO 13399 Solid Carbide Insert, Grade IC830, TiAlN - Iscar 3347725
MFR# 3347725ISO/ANSI# ISO 13399Series Tang-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description

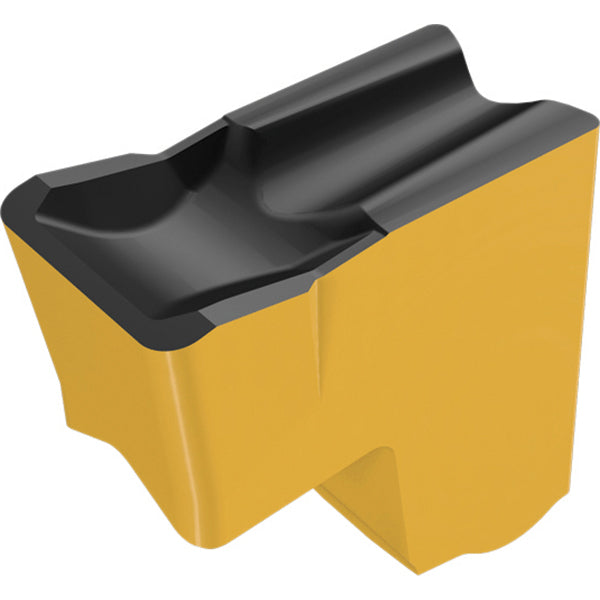

The Iscar 3347725 is a ISO 13399 solid carbide indexable insert, grade IC830, TiAlN coated. Suited for superalloy.
Specifications
ChipbreakerHF
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3
Insert styleTAG
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC830
Multi use toolYes
Overall width0.1180
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
Width tolerance0.04 (mm)
