Iscar

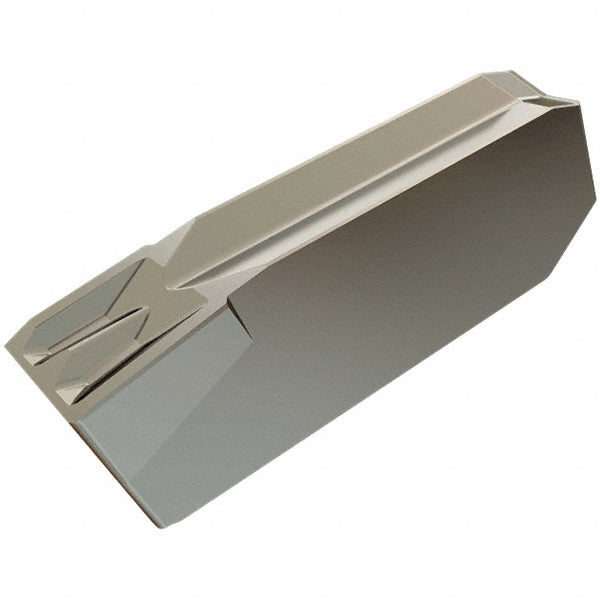

GIM 3-4LA IC354 Solid Carbide Insert, Grade IC354, TiCN - Iscar 3355054
MFR# 3355054ISO/ANSI# GIM 3-4LA IC354Series Cut Grip
$17.33List $22.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 3355054 is a GIM 3-4LA IC354 solid carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerW
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Cutting width0.1180
Full radiusNo
Insert handLeft Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size3-4
Insert size code34
Insert styleGIM
Iso codeGIM 3-4LA IC354
Lead angle4
Manufacturers catalog number3355054
Manufacturer gradeIC354
Material gradeP40
Maximum corner radius0.0080
Multi use toolYes
Overall length0.6024
Overall width0.0940
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
