Iscar

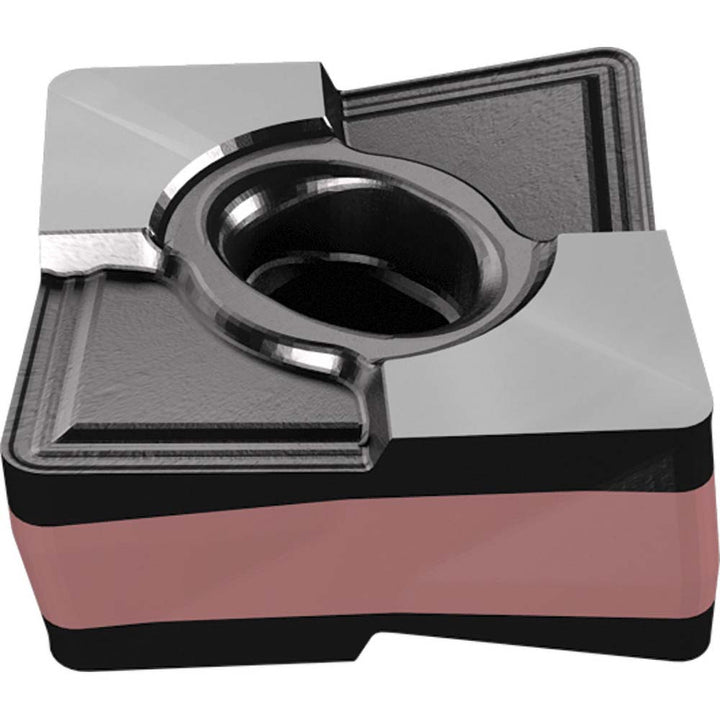

ISO 13399 Solid Carbide Insert, Grade IC806, AlTiN - Iscar 3355853
MFR# 3355853ISO/ANSI# ISO 13399Series Logiq4turn
$21.91List $28.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 3355853 is a ISO 13399 solid carbide indexable insert, grade IC806, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerM3M
Clearance codeX
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Included angle80.0
Insert length (mm)0.54
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code508
Insert styleCXMG
Insert thickness0.2280
Iso codeISO 13399
Manufacturer gradeIC806
Maximum depth of cut0.1970
Primary workpiece materialSuperalloy; Titanium
RakePositive
StandardsISO 13399
Tolerance codeM
