Iscar

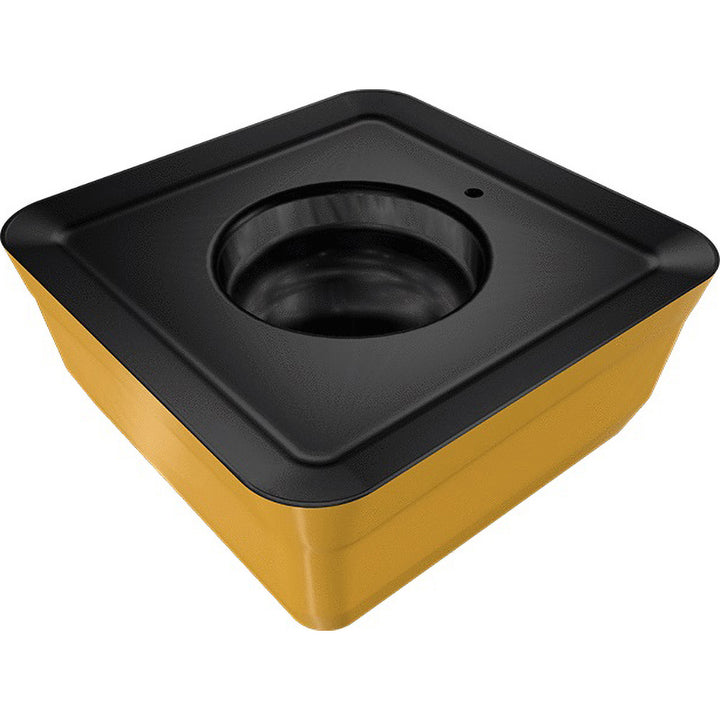

FFQ4 SOMT 0904RM-HP Solid Carbide Insert, Grade IC882, AlTiN - Iscar 3356595
MFR# 3356595ISO/ANSI# FFQ4 SOMT 0904RM-HPCat# FFQ4 SOMT 0904RM-HPSeries MILL4FEED
$28.97List $37.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC882
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 3356595 is a FFQ4 SOMT 0904RM-HP solid carbide indexable insert, grade IC882, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeFFQ4 SOMT 0904RM-HP
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityFFQ4
Cutting edge effective length0.2874
Cutting edge styleContinuous
Included angle degree90
Inscribed circle0.3350
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code0904
Insert styleSOMT
Iso codeFFQ4 SOMT 0904RM-HP
Length0.3386
Length range0.3200 to 0.4000
Manufacturers catalog numberFFQ4 SOMT 0904RM-HP
Manufacturer gradeIC882
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.0390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1496
Thickness range0.1250 to 0.1500
Width0.3386
