Iscar

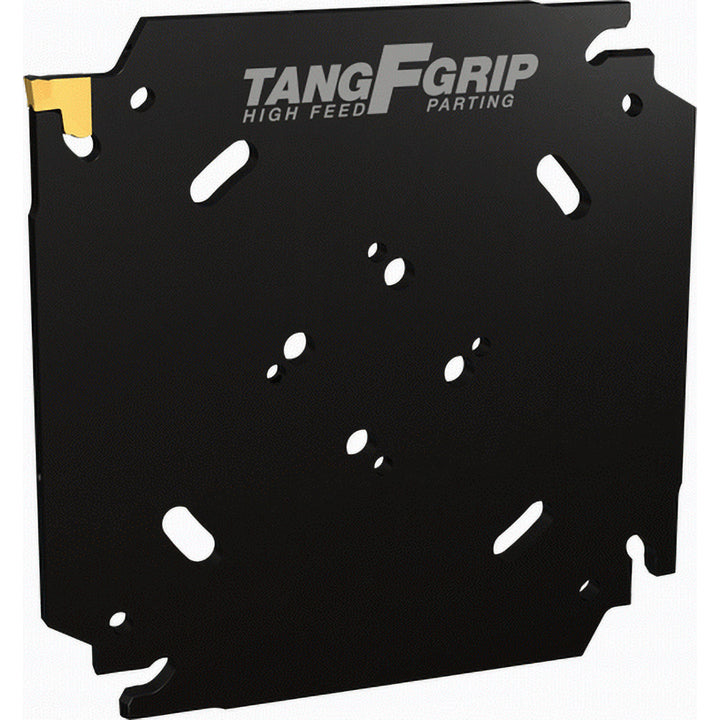

Indexable Cut-Off - Iscar 3367506
MFR# 3367506Cat# TGAQ D52-2-2Z-JHP
$200.17List $206.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3367506 indexable cut-off.
Specifications
Blade height (mm)50.00
Blade overall length (mm)50.00
Blade typeSquare
Blade width (mm)1.65
Cutting directionRight Hand
End typeDouble
Insert styleTAG
Insert width (mm)2.00
Manufacturers catalog numberTGAQ D52-2-2Z-JHP
Maximum depth of cut (mm)26.00
Maximum insert width (mm)2.00
Maximum workpiece diameter (mm)52.00
Minimum insert width (mm)2.00
