Iscar

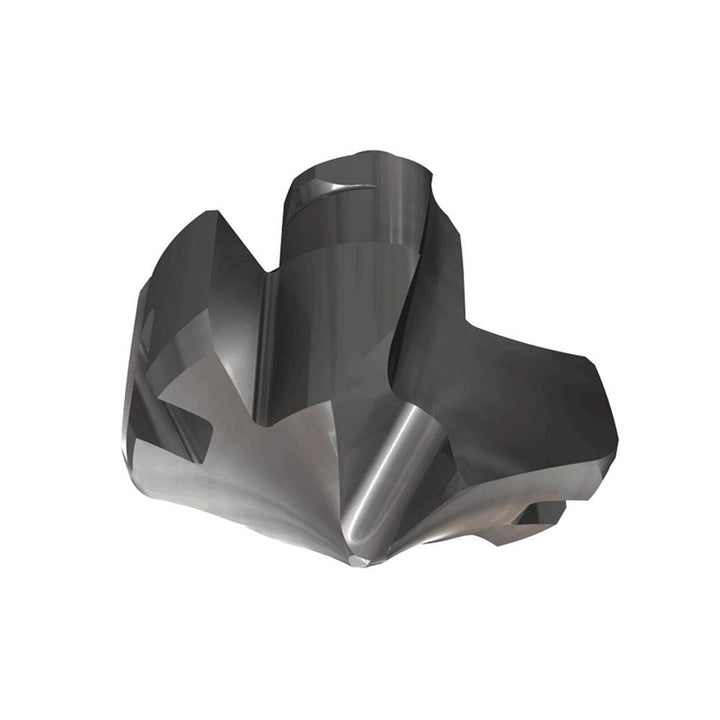

Carbide Insert, Grade IC908, TiAlN - Iscar 3380565
MFR# 3380565Series HCP-IQ
$220.27List $282.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 3380565 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in1-1/4
Drill point angle137
Flute length (mm)11.00
Flute typeHelical
Functional length0.4334
Height0.707
Included angle degree137
Insert geometryP
Insert holding methodClamp
Insert seat size31
Iso numberHCP 3175-IQ
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.7076
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleHCP-IQ
Tip materialSolid Carbide
Web thinningWeb Thinned
