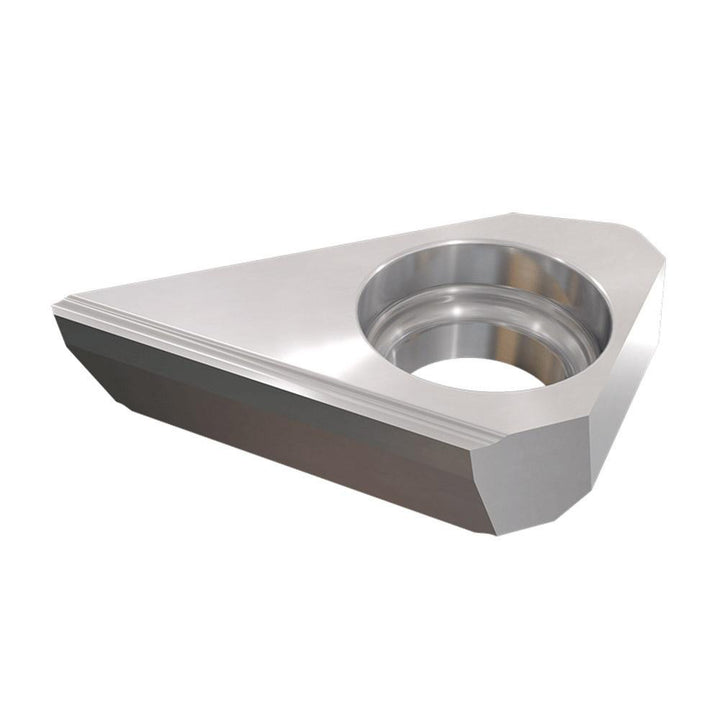

Triangle Carbide Insert, Grade IC808, AlTiN - Iscar 3381658

Iscar

Triangle Carbide Insert, Grade IC808, AlTiN - Iscar 3381658

MFR# 3381658Series XCGT

$20.93List $26.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC808
MaterialCarbide

Description

The Iscar 3381658 is a carbide indexable insert, grade IC808, AlTiN coated. Suited for steel, stainless steel, cast iron, hard material, hi-temp alloys.

Specifications

Chamfer angle45.000
ChipbreakerDT
CoatedCoated
CoatingAlTiN
Corner radius0.0000in
Inscribed circle0.3346in
Insert materialCarbide
Insert shapeTriangle
Insert size code09
Insert styleXCGT
Insert thickness0.1300in
Manufacturer gradeIC808
Overall length0.63
Overall width0
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Hi-Temp Alloys
