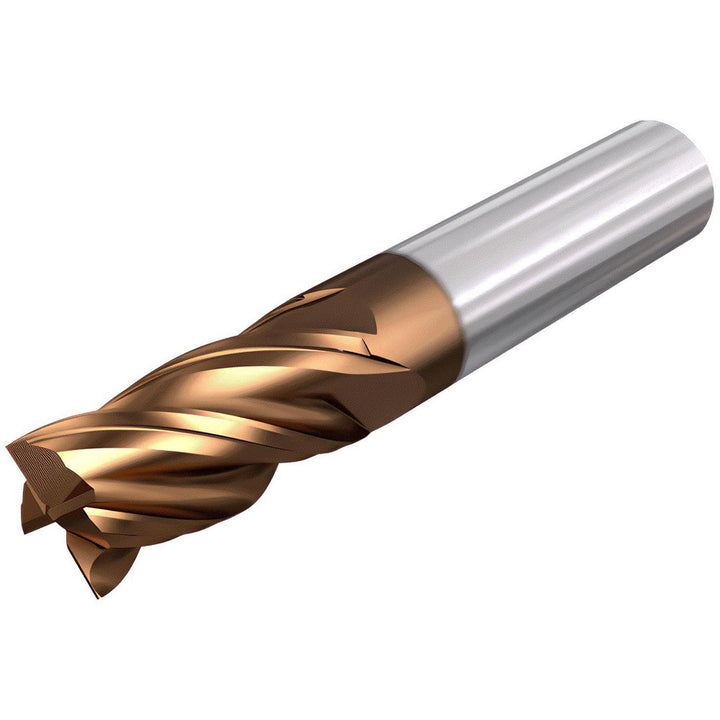

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398063

Iscar

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398063

MFR# 3398063Series ECI-4-VF

$33.19List $39.80 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiCrSiN

Description

The Iscar 3398063 is a 3/8 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiCrSiN finish for longer tool life. 1-1/2 length of cut, 2 overall length. Series ECI-4-VF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiCrSiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral; Helical
For use withToolholder
Length of cut in1-1/2
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8
Number of flutes4
Overall length in2
PitchNormal
Reach length in3/8
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
