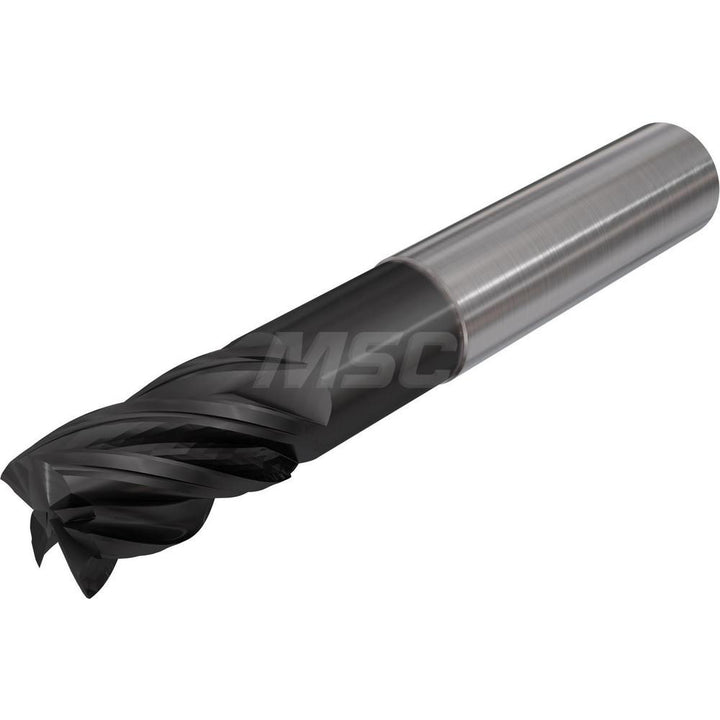

1/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398249

Iscar

1/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398249

MFR# 3398249

$38.86List $46.60 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingTiAlCN

Description

The Iscar 3398249 is a 1/8 4-flute Solid Carbide (Submicron) square end mill. 1/2 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1/2
Material gradeSubmicron
Mill diameter in1/8
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexYes
