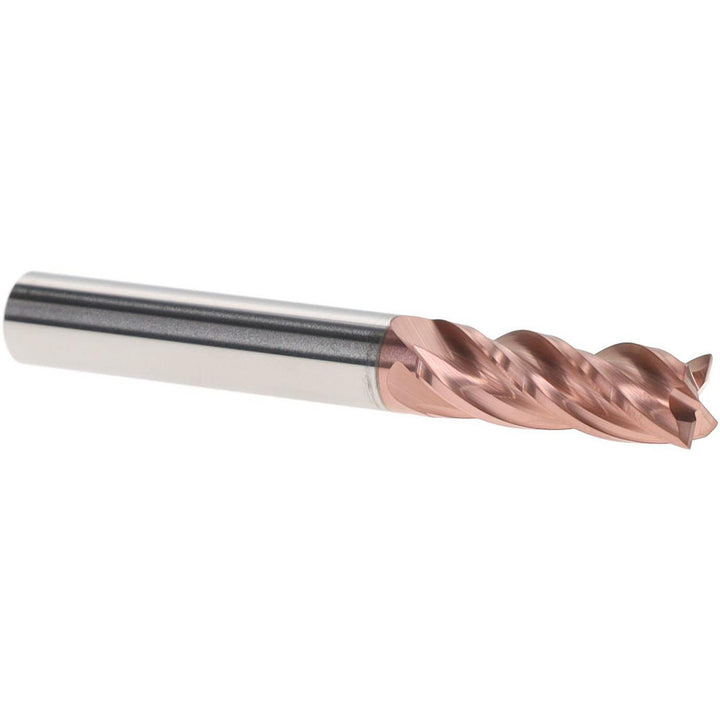

5/16" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398269

Iscar

5/16" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398269

MFR# 3398269

$45.62List $54.70 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingTiAlCN

Description

The Iscar 3398269 is a 5/16 4-flute Solid Carbide (Submicron) square end mill. 7/8 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in7/8
Material gradeSubmicron
Mill diameter in5/16
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
