Iscar

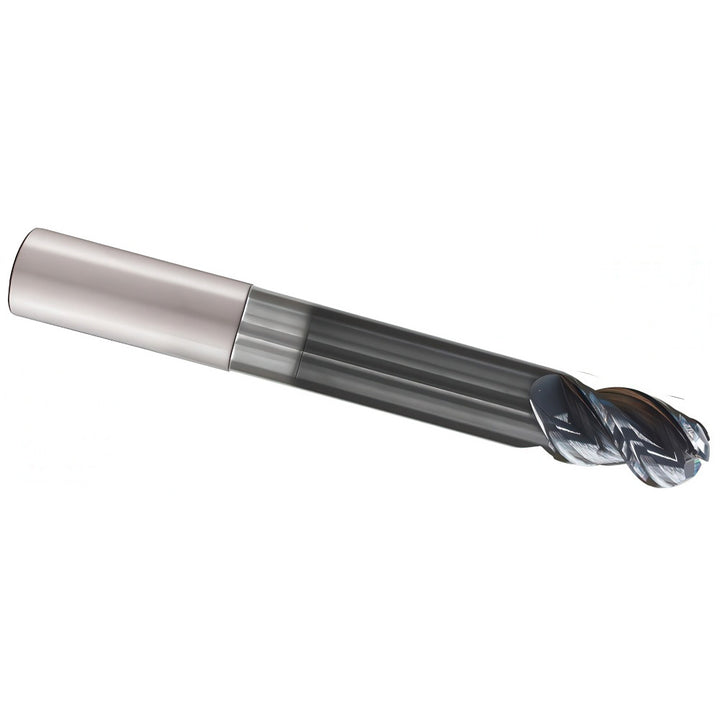

3/8" 4-Flute Solid Carbide Ball End Mill, AlTiCrSiN - Iscar 3398278

MFR# 3398278Cat# EBI-4 375-750/1.25CVF3Series Flash Solid

$66.64List $79.80 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlTiCrSiN

Description

The Iscar 3398278 is a 3/8 4-flute Solid Carbide ball end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 3/4 length of cut, 3 overall length. Series Flash Solid.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiCrSiN

Coating finish familyAlTiCrSiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/4

Manufacturers catalog numberEBI-4 375-750/1.25CVF3

Material removal typeRoughing & Finishing

Mill diameter in3/8

Number of flutes4

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Reach length in1-1/4

Shank diameter in3/8

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
