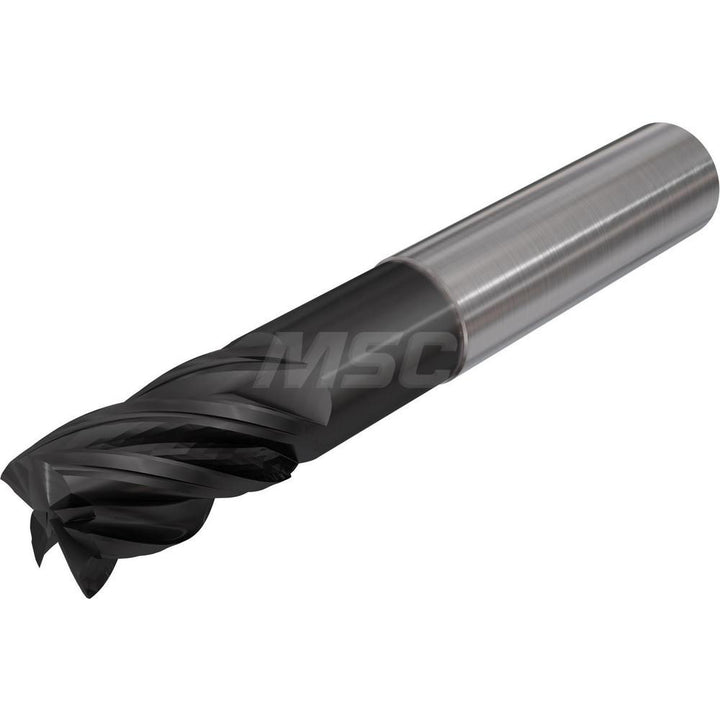

7/16" 4-Flute Solid Carbide Square End Mill, AlTiCrSiN - Iscar 3398295

Iscar

7/16" 4-Flute Solid Carbide Square End Mill, AlTiCrSiN - Iscar 3398295

MFR# 3398295Series ECI-4-VF

$84.56List $101.40 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingAlTiCrSiN

Description

The Iscar 3398295 is a 7/16 4-flute Solid Carbide (Submicron) square end mill with a AlTiCrSiN finish for longer tool life. Suited for hardened materials, cast iron, stainless steel, steel, high-temp alloy. 1-1/2 length of cut, 4 overall length. Series ECI-4-VF.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiCrSiN
Coating finish familyAlTiCrSiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/2
Material gradeSubmicron
Mill diameter in7/16
Number of flutes4
Overall length in4
Primary workpiece materialHardened Materials; Cast Iron; Stainless Steel; Steel; High-Temp Alloy
Shank diameter in7/16
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
