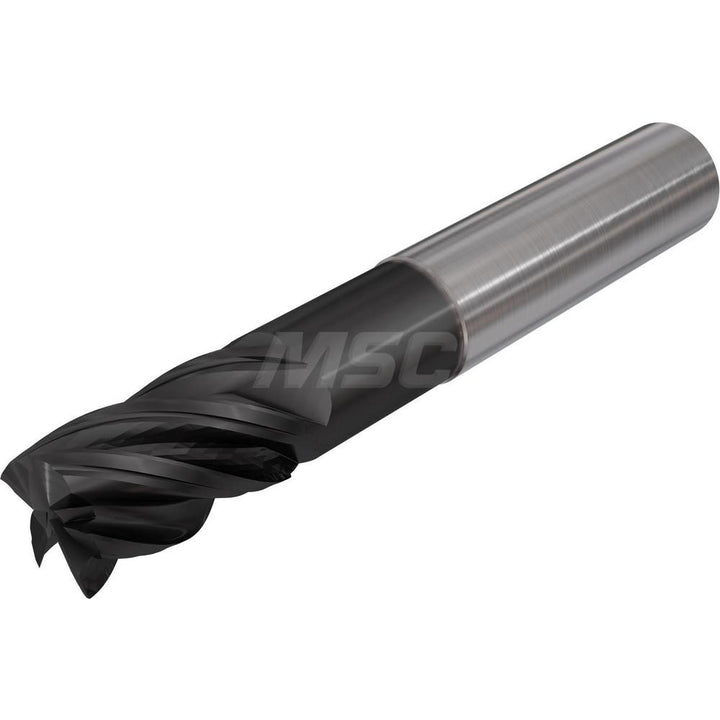

1/2" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398301

Iscar

1/2" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398301

MFR# 3398301

$93.41List $112.00 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiAlCN

Description

The Iscar 3398301 is a 1/2 4-flute Solid Carbide (Submicron) square end mill with a TiAlCN finish for longer tool life. 7/8 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in7/8
Material gradeSubmicron
Mill diameter in1/2
Number of flutes4
Overall length in3
Reach length in1-3/8
Shank diameter in1/2
Variable helixNo
Variable indexYes
