5/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398333

Iscar

5/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398333

MFR# 3398333

$207.15List $248.40 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiAlCN

Description

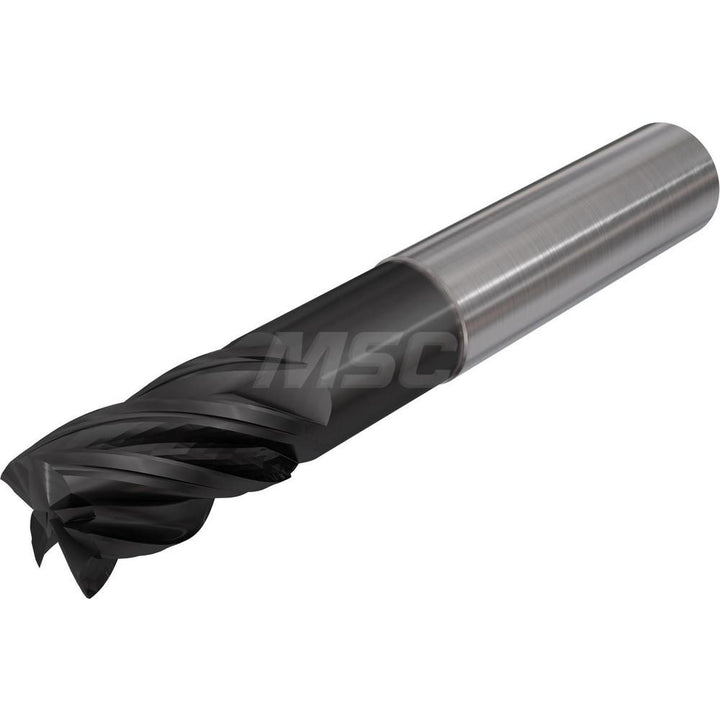

The Iscar 3398333 is a 5/8 4-flute Solid Carbide (Submicron) square end mill with a TiAlCN finish for longer tool life. 3 length of cut, 6 overall length.

Specifications

CentercuttingYes
Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in3
Material gradeSubmicron
Mill diameter in5/8
Number of flutes4
Overall length in6
Shank diameter in5/8
Variable helixNo
Variable indexYes
