Iscar

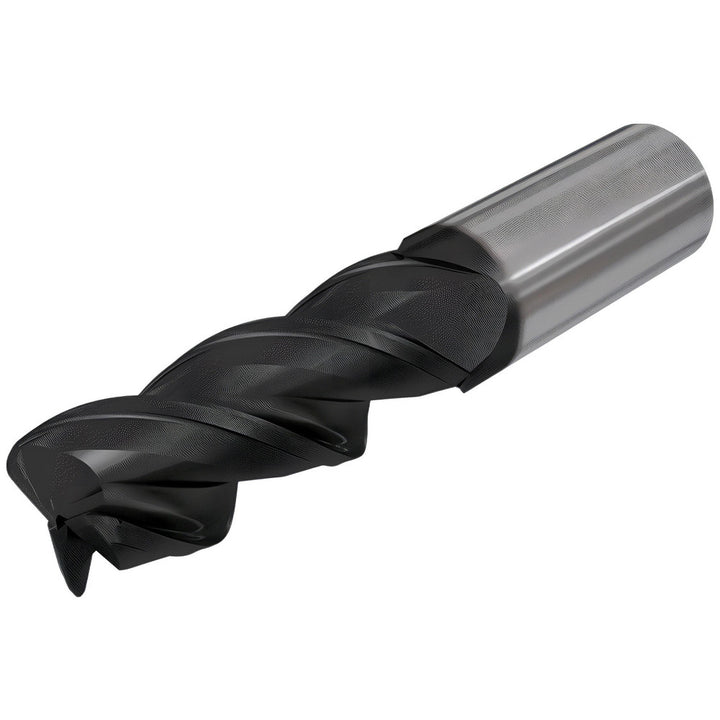

1/2" 3-Flute Solid Carbide Corner Radius End Mill, DLC - Iscar 3399171
MFR# 3399171Cat# ECAI-B3 .5-1.5CR015-4ECSeries ECAI-B3-EC
$162.95List $192.00
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingDLC
Description
The Iscar 3399171 is a 1/2 3-flute Solid Carbide (Submicron) corner radius end mill with a DLC finish for longer tool life. Suited for non-ferrous metal. 1-1/2 length of cut, 4 overall length. Series ECAI-B3-EC.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishDLC
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Length of cut in1-1/2
Length typeMedium
Manufacturers catalog numberECAI-B3 .5-1.5CR015-4EC
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/2
Number of flutes3
Overall length in4
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/2
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
