Iscar

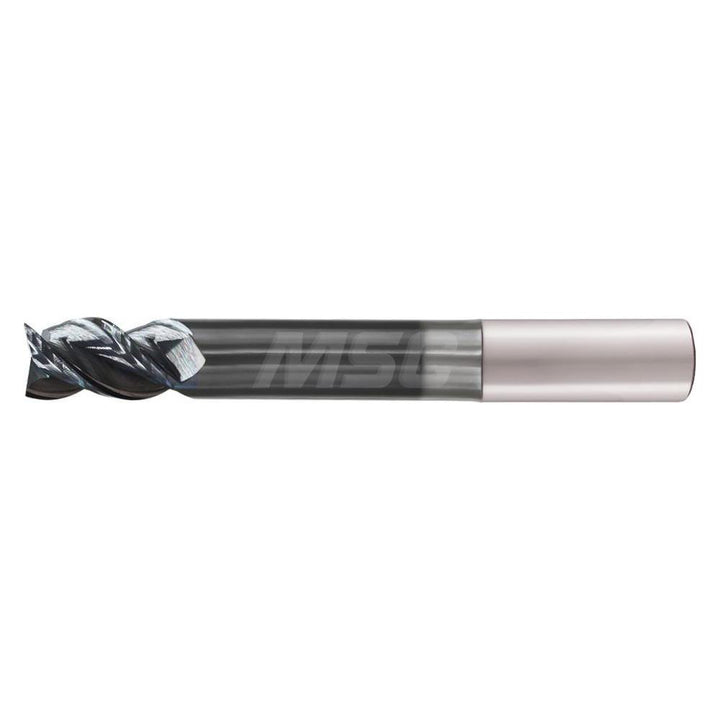

3/4" 3-Flute Solid Carbide Corner Radius End Mill, DLC - Iscar 3399238

MFR# 3399238Cat# ECAI-B3 .75-2.3CR125-5ECSeries ECAI-B3-EC

$416.55List $499.50 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingDLC

Description

The Iscar 3399238 is a 3/4 3-flute Solid Carbide (Submicron) corner radius end mill with a DLC finish for longer tool life. Suited for non-ferrous metal. 2-1/4 length of cut, 5 overall length. Series ECAI-B3-EC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDLC

Coolant throughNo

Corner radius0.1250

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in2-1/4

Length typeStandard

Manufacturers catalog numberECAI-B3 .75-2.3CR125-5EC

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/4

Number of flutes3

Overall length in5

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/4

Shank diameter in3/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
