Iscar

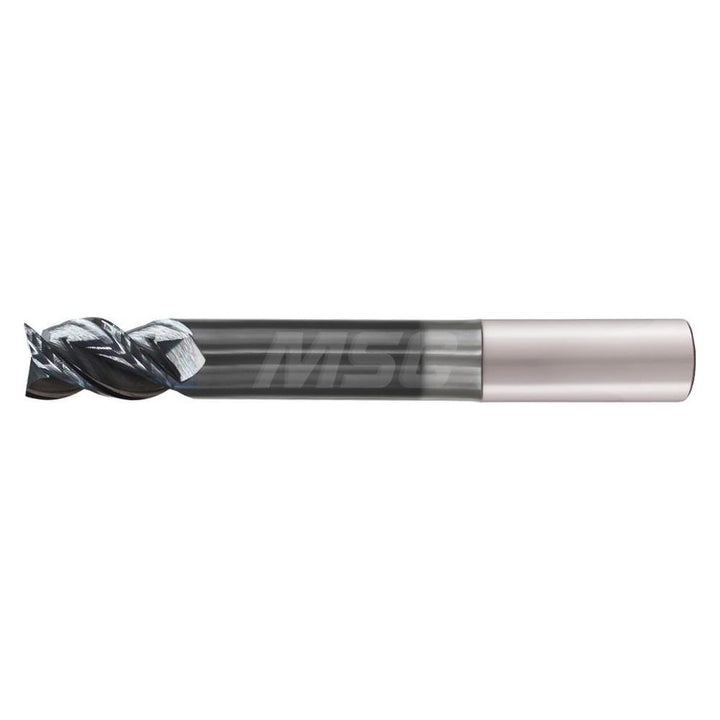

1/8" 3-Flute Solid Carbide Corner Radius End Mill, DLC - Iscar 3399289

MFR# 3399289Cat# ECAI-B3 .125-.5CR015-1.5Series ECAI-B3-EC

$45.03List $54.00 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes3

MaterialSolid Carbide

CoatingDLC

Description

The Iscar 3399289 is a 1/8 3-flute Solid Carbide (Submicron) corner radius end mill with a DLC finish for longer tool life. Suited for non-ferrous metal. 1/2 length of cut, 1-1/2 overall length. Series ECAI-B3-EC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDLC

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Length of cut in1/2

Length typeLong

Manufacturers catalog numberECAI-B3 .125-.5CR015-1.5

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1/8

Number of flutes3

Overall length in1-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in1/2

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
