Iscar

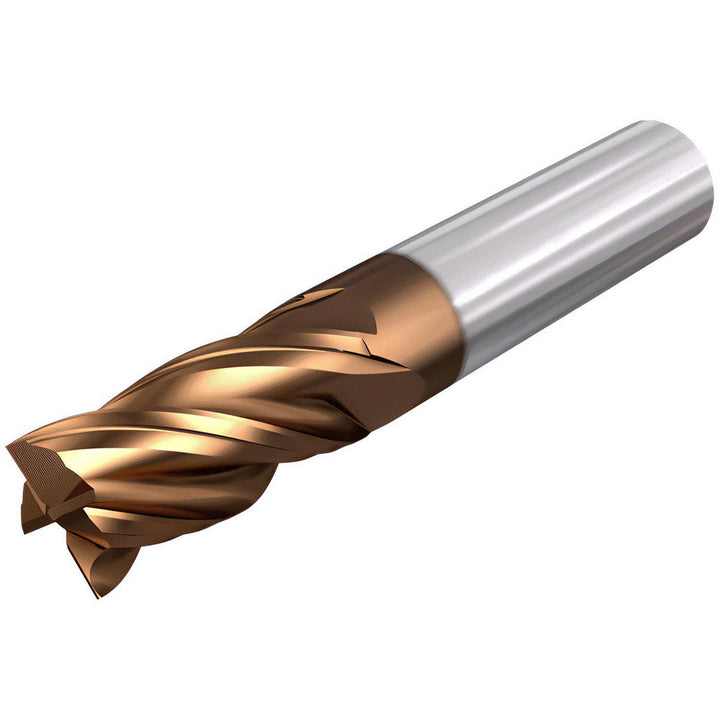

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3401107

MFR# 3401107Cat# ECI-4 375-2.5W03VF5Series ECI-4-VF

$110.58List $132.60 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlTiCrSiN

Description

The Iscar 3401107 is a 3/8 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 2-1/2 length of cut, 5 overall length. Series ECI-4-VF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiCrSiN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Length of cut in2-1/2

Length typeExtra Long

Manufacturers catalog numberECI-4 375-2.5W03VF5

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/8

Number of flutes4

Overall length in5

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in2-1/2

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
