Iscar

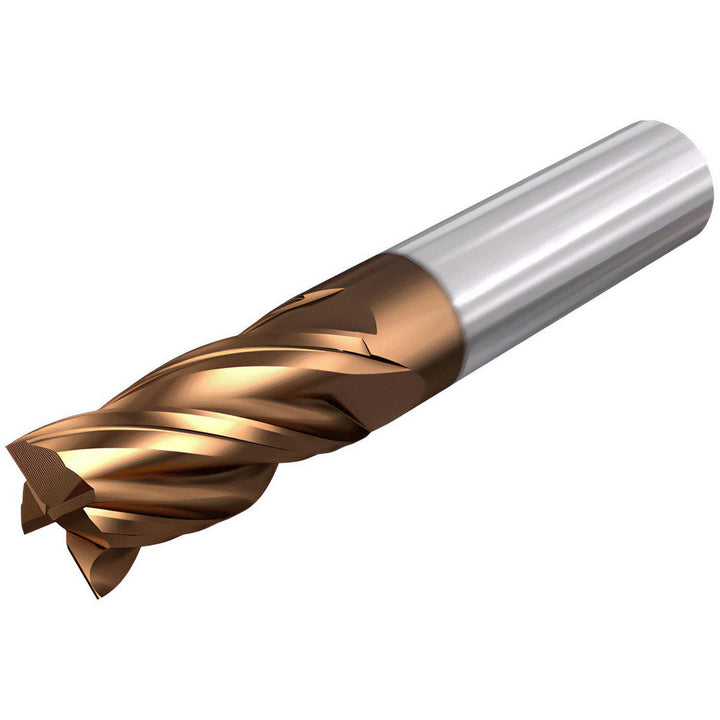

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3401150

MFR# 3401150Cat# ECI-4 375-1.0W06VF2.5Series ECI-4-VF

$65.55List $78.60 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlTiCrSiN

Description

The Iscar 3401150 is a 3/8 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1 length of cut, 2-1/2 overall length. Series ECI-4-VF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiCrSiN

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Length of cut in1

Length typeMedium

Manufacturers catalog numberECI-4 375-1.0W06VF2.5

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/8

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in1

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
