Iscar

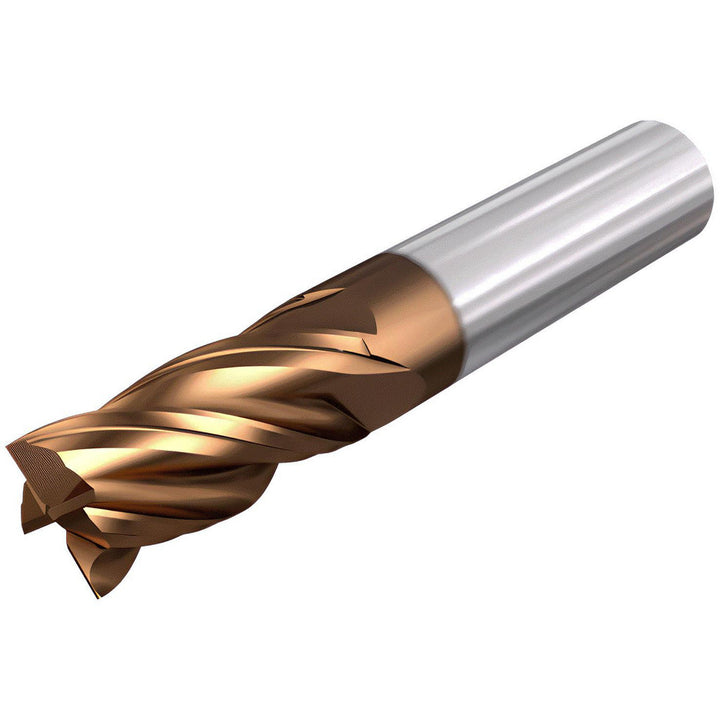

7/16" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3401157
MFR# 3401157Cat# ECI-4 437-3.0W06VF6Series ECI-4-VF
$141.06List $166.20
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingAlTiCrSiN
Description
The Iscar 3401157 is a 7/16 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3 length of cut, 6 overall length. Series ECI-4-VF.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiCrSiN
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Length of cut in3
Length typeExtra Long
Manufacturers catalog numberECI-4 437-3.0W06VF6
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in7/16
Number of flutes4
Overall length in6
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in3
Shank diameter in7/16
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
