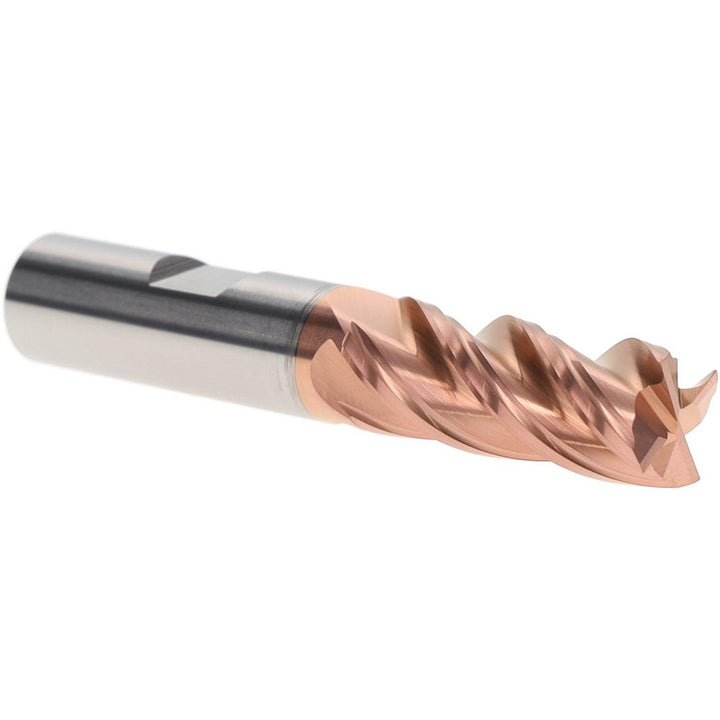

1/2" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3401297

Iscar

1/2" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3401297

MFR# 3401297

$77.22List $92.60 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiAlCN

Description

The Iscar 3401297 is a 1/2 4-flute Solid Carbide (Submicron) square end mill with a TiAlCN finish for longer tool life. 1-1/4 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/4
Material gradeSubmicron
Mill diameter in1/2
Number of flutes4
Overall length in3
Shank diameter in1/2
Variable helixNo
Variable indexYes
