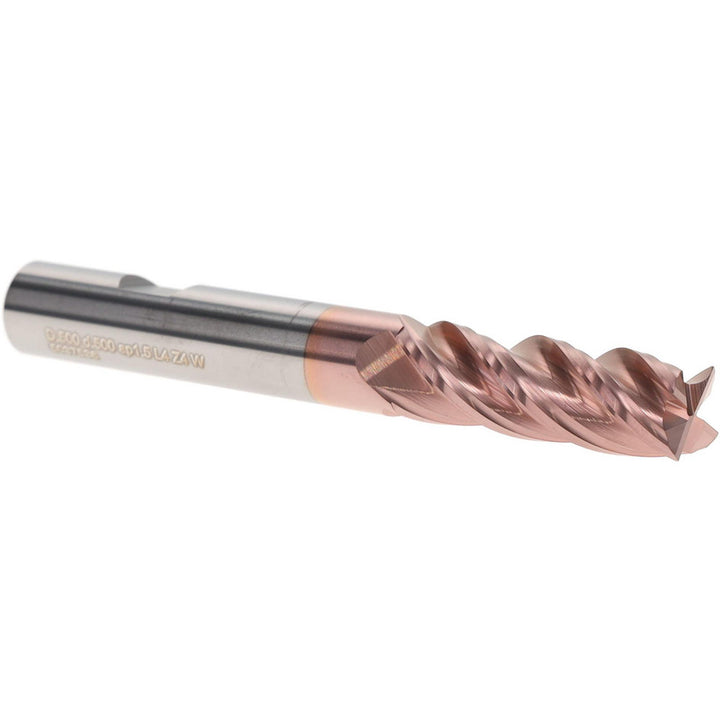

1/2" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3401299

Iscar

1/2" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3401299

MFR# 3401299

$87.64List $105.10 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiAlCN

Description

The Iscar 3401299 is a 1/2 4-flute Solid Carbide (Submicron) square end mill. 1-1/2 length of cut, 4 overall length.

Specifications

CentercuttingYes
Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/2
Material gradeSubmicron
Mill diameter in1/2
Number of flutes4
Overall length in4
Shank diameter in1/2
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG1/2" 4-Flute Solid Carbide Corner Radius End Mill, WXL - OSG 36702611 $143.62 Guhring1/2" 4-Flute Solid Carbide Corner Radius End Mill, Super A - Guhring 9038760127060 $164.80 Kennametal1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6676423 $164.22 Widia0.5000" 4-Flute Solid Carbide Single End Mill, WU20PE - Widia 6945716 $89.95
