Iscar

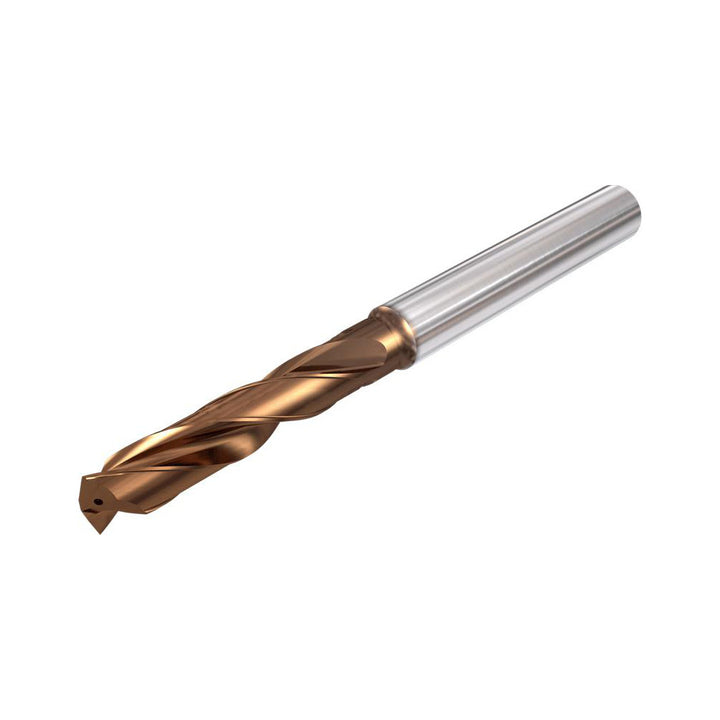

Solid Carbide Screw Machine Drill Bit, AlTiCrSiN, 140° point - Iscar 3411433
MFR# 3411433Series SCD
$181.66List $207.70
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiCrSiN
Description
The Iscar 3411433 is a Solid Carbide Screw Machine drill bit with a AlTiCrSiN finish, 140° point. Suited for steel, stainless steel, cast iron, hard material. Series SCD.
Specifications
Coating finishAlTiCrSiN
Coolant throughYes
Cutting directionRight Hand
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0700
Flute by diameter ratio3xD
Flute typeSpiral
Maximum drilling depth1.5090
Number of flutes2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Shank length1.8500
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
