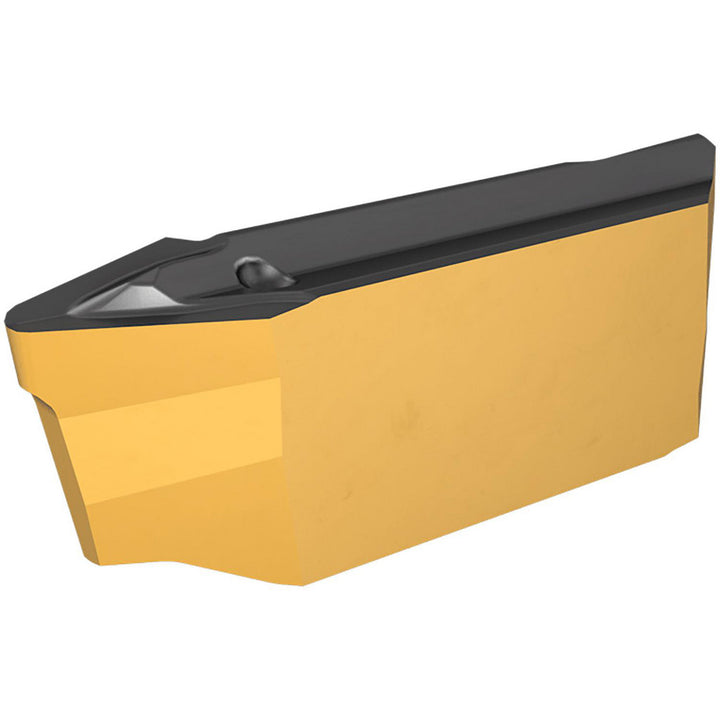

GIVL 304 Carbide Profiling Insert, Grade IC808, TiAlN/TiN, Left Hand - Iscar 3441846

Iscar

GIVL 304 Carbide Profiling Insert, Grade IC808, TiAlN/TiN, Left Hand - Iscar 3441846

MFR# 3441846Series Cut-V-Grip

$38.46
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingTiAlN/TiN

Description

The Iscar 3441846 is a left-hand GIVL-style carbide profiling insert from the Cut-V-Grip series, grade IC808 with a PVD TiAlN/TiN coating. Size code 304, F1M chipbreaker, 0.40 mm (0.0157") corner radius, 0.504" maximum depth of cut, clamp-held. Manufacturer designation GIVL304-F1M-12P IC808.

Specifications

Chip breakerF1M
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0157
Insert handLeft Hand
Insert height0.7440
Insert holding methodClamp
Insert length0.5039
Insert materialCarbide
Insert size code304
Insert styleGIVL
Manufacturer gradeIC808
Material gradeIC808
Maximum depth of cut0.5040
Msc manufacturer numberGIVL304-F1M-12P
Rake angle12.000
Relief angle5.000
Thickness in0.1150
