Iscar

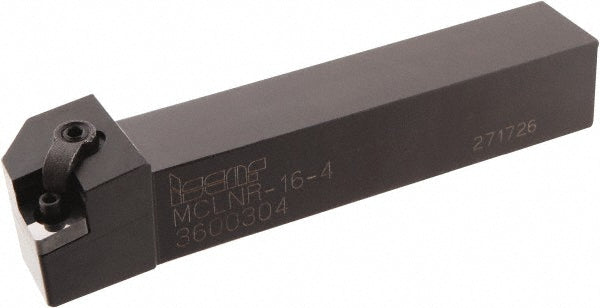

Indexable Turning & Profiling - Iscar 3600304
MFR# 3600304Series Isoturn
$146.74List $151.00
Save 2%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3600304 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCNMG431-GN
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.1900
Insert compatibilityCN..43..
Insert holding methodClamp; Pin
Insert inscribed circle in1/2
Multi use toolNo
Overall length in6
RakeNegative
Rake angle-6
Shank height in1
Shank width in1
StandardsISO 13399
Toolholder styleMCLN
