Iscar

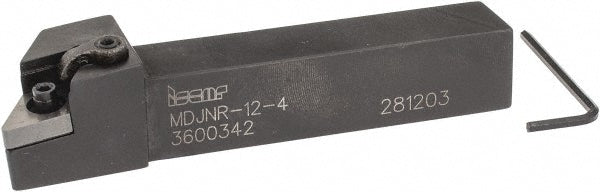

Indexable Turning & Profiling - Iscar 3600342
MFR# 3600342Series Isoturn
$129.03List $137.25
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3600342 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeDNMG432-GN
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.2500
Insert compatibilityDN..43.
Multi use toolNo
Overall length in4-1/2
RakeNegative
Rake angle-6; -7
Shank height in3/4
Shank width0.7500
StandardsISO 13399
Toolholder materialSteel
Toolholder styleMDJN
