Iscar

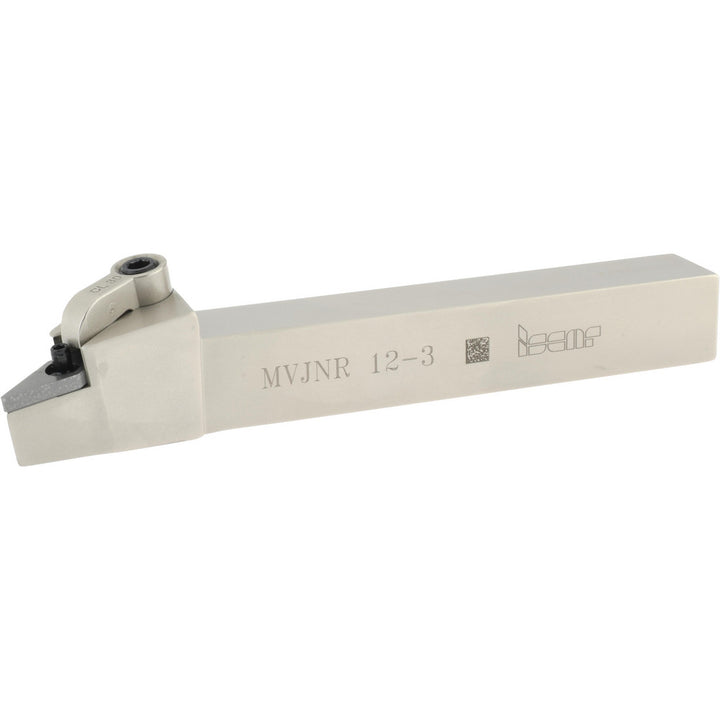

Indexable Turning & Profiling - Iscar 3600663
MFR# 3600663Series Isoturn
$164.63List $170.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3600663 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeVNMG331-F3M
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.6900
Insert compatibilityVN..33..
Insert holding methodClamp; Pin
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-10.5; -5.5
Shank height0.7500
Shank width in3/4
StandardsISO 13399
Toolholder styleMVJN
