Iscar

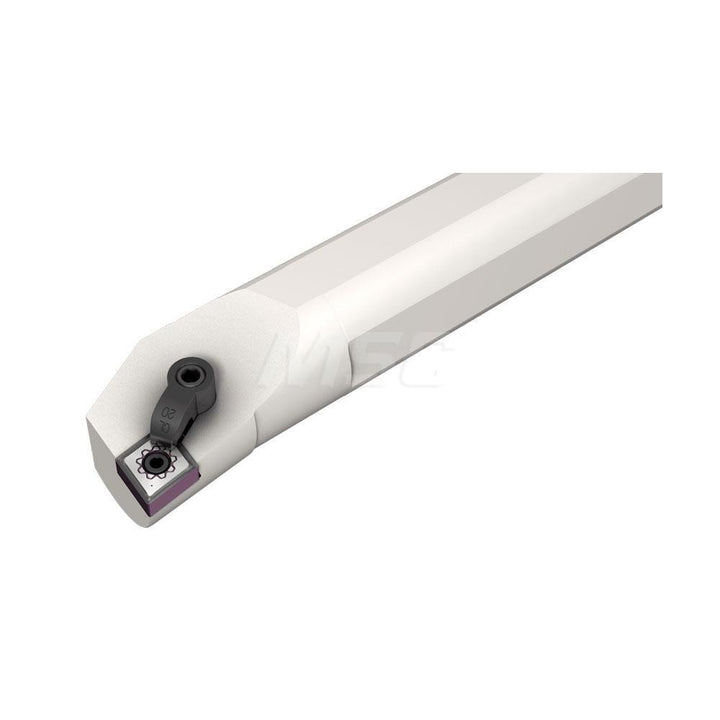

Indexable Boring - Iscar 3600807
MFR# 3600807Series Isoturn
$439.07List $453.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3600807 indexable boring. Series Isoturn.
Specifications
Back of bar to cutting edge0.6400
Center to cutting edge0.6400
Compatible insert shapeDiamond
Compatible insert size code43
Coolant throughYes
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Insert compatibilityCN.. 43..
Insert holding methodClamp
Insert inscribed circle in1/2
Lead angle-5.00
Maximum bore depth in4
Minimum bore diameter in1-13/32
Minimum bore diameter using diamond insert cartridge1.4063
Minimum bore diameter using triangle insert cartridge1.4000
Msc manufacturer numberA-MCLNL 16-4
Multi use applicationBoring
Multi use toolNo
Overall length in12
RakeNegative
Rake angle-12.00
Shank diameter in1
StandardsISO 13399
Toolholder styleA-MCLN
Tool materialSteel
