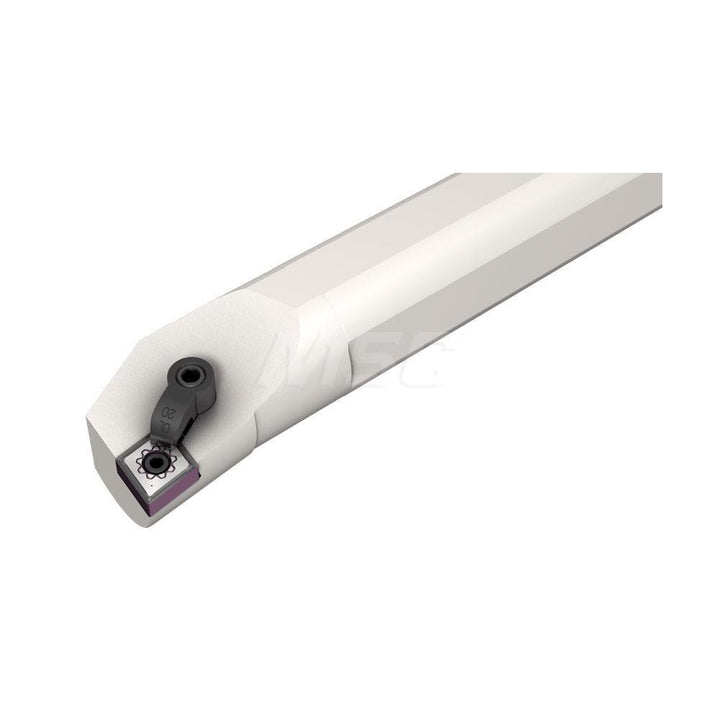

Indexable Boring - Iscar 3600809
MFR# 3600809Series Isoturn
$481.59List $497.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3600809 indexable boring. Series Isoturn.
Specifications
Back of bar to cutting edge0.7700
Center to cutting edge0.7700
Compatible insert shapeDiamond
Compatible insert size code43
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Insert compatibilityCN.. 43..
Insert holding methodClamp
Insert inscribed circle in1/2
Lead angle-5.00
Maximum bore depth in5
Minimum bore diameter in1-17/32
Minimum bore diameter using diamond insert cartridge1.5313
Minimum bore diameter using triangle insert cartridge1.5300
Msc manufacturer numberS-MCLNR 20-4
Multi use applicationBoring
Multi use toolNo
Overall length in12
RakeNegative
Rake angle-12.00
Shank diameter in1-1/4
StandardsISO 13399
Toolholder styleA-MCLN
Tool materialSteel
