Iscar

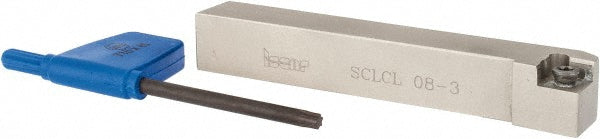

Indexable Turning & Profiling - Iscar 3600865
MFR# 3600865Series Isoturn
$133.65List $138.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3600865 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge0.6300
Compatible insert size codeCCMT3-1-WG
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length0.5600
Insert compatibilityCC.T 3
Insert holding methodScrew
Multi use toolNo
Overall length3.5000
RakeNeutral
Rake angle0
Shank height0.5000
Shank width0.5000
StandardsISO 13399
Toolholder styleSCLC
