Iscar

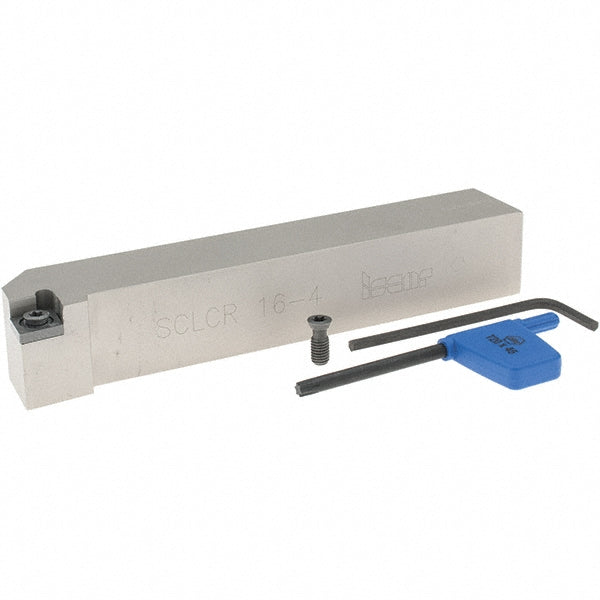

Indexable Turning & Profiling - Iscar 3600873
MFR# 3600873Series Isoturn
$159.79List $165.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3600873 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCNMG431-GN
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.7800
Insert compatibilityCC.T 43..
Insert holding methodScrew
Multi use toolNo
Overall length6.0000
RakeNeutral
Rake angle0
Shank height1.0000
Shank width1.0000
StandardsISO 13399
Toolholder styleSCLC
