Iscar

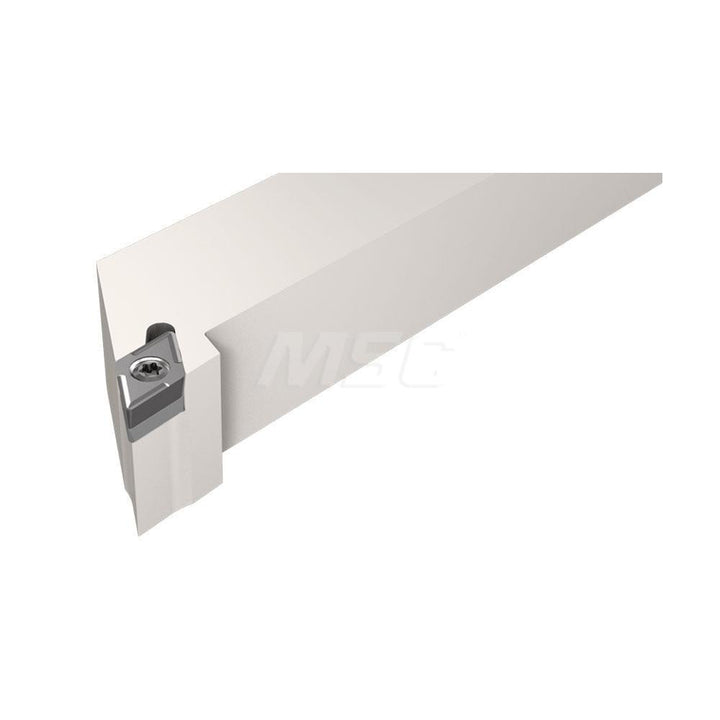

Indexable Turning & Profiling - Iscar 3600894
MFR# 3600894Series Isoturn
$159.79List $165.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3600894 indexable turning & profiling. Series Isoturn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeDCGT3-0-SM
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length0.7800
Insert compatibilityDC..3
Insert holding methodScrew
Multi use toolNo
Overall length6.0000
RakeNeutral
Rake angle0
Shank height1.0000
Shank width1.0000
StandardsISO 13399
Toolholder styleSDJC
